Medium and Long Range Hydro-acoustic Communicator

Intelligent Marine hydro-acoustic communicator is based on the company's industry-leading hydro-acoustic communication technology independent research and development of underwater wireless digital communication equipment, is the indispensable equipment for construction of underwater networks (including communication networks, sensor networks, Internet of Things, etc.

Keyword：

Introduction

Accesories

Recommended

Overview

Functional Features

Anti-multi path interference and environmental noise channel equalization technology
Self-developed hydro-acoustic communication network protocol stack, which can self-organizing network underwater
Miniaturized and low power consumption hardware platform based on DSP+ARM
Adaptive adjustment in multi-frequency/multi-modulation and different environments
Built-in forward error correction coding and decoding technology
Built-in range measurement function
Standard RS-232 data interface
Bidirectional half-duplex high-speed communication
Technical Parameters

Technical Parameters

12kHz Hydro-acoustic Communicator

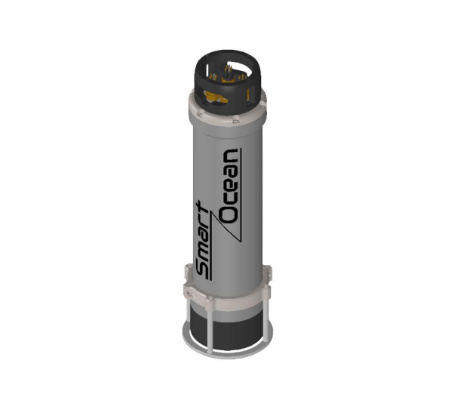

Dimensions (All-in-one)	φ122 x 550 mm	Product Weight (All-in-one)	18kg (Air) 12kg (Water)

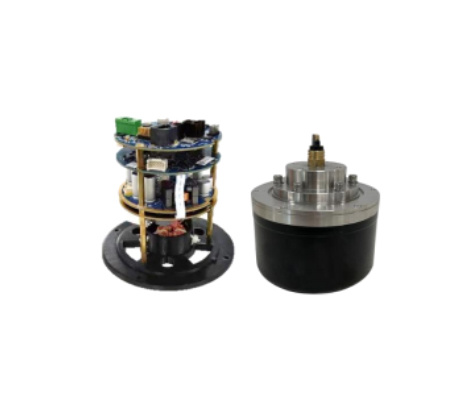

Main unit size (split unit)	φ 99.5 x 150 mm	Transducer Size	φ106 x 76 mm
Communication Distance	10KM(3K bandwidth) 5KMm(6K bandwidth)	Typical Communication Rate	300~3000bps
Center Frequency	12kHz	Communication Interface	Serial port (RS232)
Communication System	OFDM	Number of transceiver arrays	Single transmitter and single receiver
Transmit Power Consumption	<180W	Receive Power Consumption	≤ 1W
Working Depth	2000m (customizable)	Transducer Pressure	6000m
Anti-Doppler	6 sections	Power Supply	DC24V/8A
Working Temperature	-5~40℃	Storage Temperature	-20~70℃
