Introduction

 86-860mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 86mm ～ 860mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance.

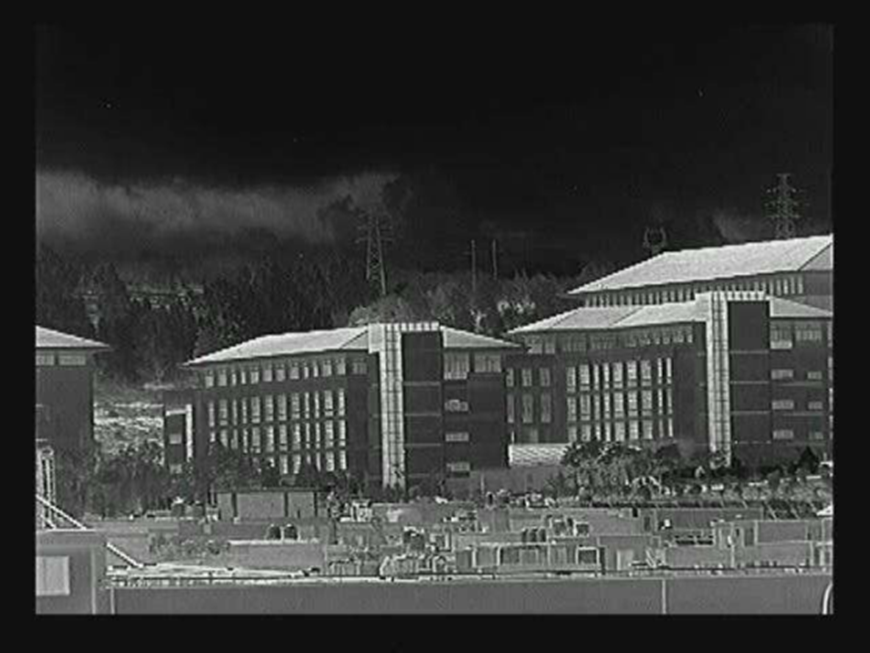

Figure1 Thermal imaging image

Technical Specification

1 Detector

Detector MCT 640 ×512

Spectral range 3.7 ~4.8μm

Pixel pitch 15μm

Cooling method Stirling Refrigerator

2 Lens

Focal length 86 ㎜～860 ㎜ continuous zoom

3 Performance

FOV range 0.64°(H) ×0.51°(V) to 6.4°(H) ×5.1°(V)

Cooling time ≤8 minutes in normal temperature

Video Output standard PAL format analog video signal

Frame Frequency 30Hz

NETD ≤25mk@25℃

Power source DC 24 ~32 V, with power reverse polarity protection

Power consumption ≤12W@25℃, steady state

                                 ≤30W@25℃, start-up peak

Operation Temperature -30℃~55℃

Storage Temperature -40℃~70℃

4 Command and Control

Control communication RS232/RS422

Correction manual correction/background correction

Polarity control white hot/black hot switch

Electronic Zoom ×2/×4 electronic zoom

Image enhancement Yes

Cross display Yes

Image turning Horizontal/vertical
