FG-980S Inertial Navigation System
Keyword：
Introduction
Accesories
Recommended
Overview
FG-980S Inertial Navigation System, in which the GNSS receiver embedded, adopts three high accuracy single-axis closed-loop miniature FOGs and quartz accelerometers. This system is compact design with very high performance as well as small size, light weight and low power consumption, which is perfectly applicable for UAV, helicopter and aircraft.
Features
• Provide self-contained, abundant, continuous and accurate navigation information
• Small size, light weight and low power consumption
• Embedded satellite navigation technology
Applications
UAVS , Helicopter , General Aviation Aircraft , etc.

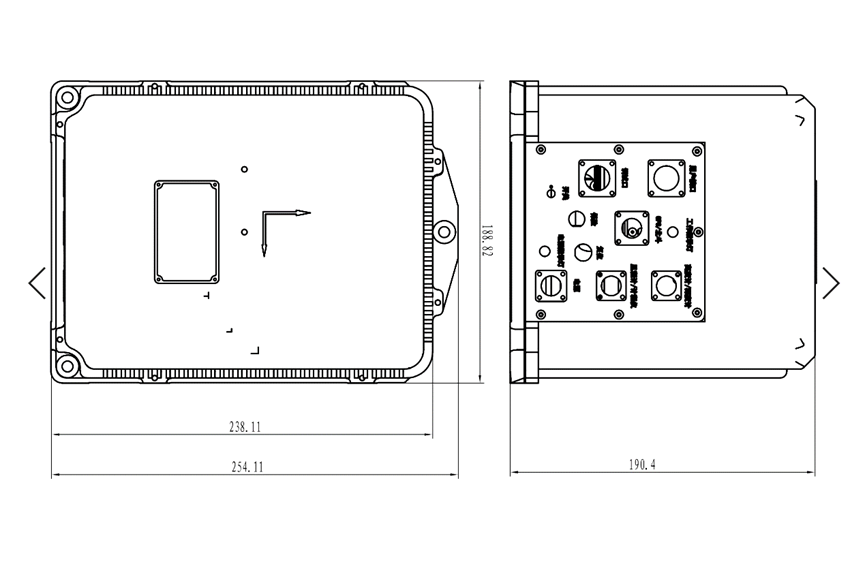

Structural Dimension
Specifications
| Alignment Time | GC:10min | |
| Fast:5min | ||
| Accuracy | Position | Inertial:1nm/h |
| Integrated:20m | ||
| Velocity | Inertial:1m/s | |
| Integrated:0.8m/s | ||
| Attitude | Inertial:0.02° | |
| Integrated:0.01° | ||
| Heading | Inertial:0.1° | |
| Integrated:0.08° | ||
| Dynamic Range | Angular Rate | ±400°/s |
| Acceleration | ±15g | |
| Operation Requirement | Temperature | Operating:－45～＋70℃ |
| Storage:－55～＋85℃ | ||
| Shock | Half-sinusoid:15g,11ms | |
| Vibration | 0.04g2/Hz | |
| MTBF | 50000h | |
| Power Supply/Consumption | 28VDC/30W | |
| Interface | MIL-STD-1553B | |
| ARINC-429 | ||
| RS-422 | ||
| Dimension | Navigation unit:238mm×188mm×190mm | |
| Max size:254mm×188mm×190mm | ||
| Weight | 7.1kg(excluding receiving antenna) | |
