24KHz High Precision USBL Positioning System
Keyword：
Introduction
Accesories
Recommended
Overview
The high-precision USBL communication and positioning system consists of hydroacoustic communication and positioning software, USBL communication and positioning base station and split beacon.It is designed to provide high-speed hydro-acoustic communication and high-precision hydroacoustic positioning for ROV and AUV.
FEATURES
◉ Integrated communication and positioning
◉ Optional built-in fiber optic gyro
◉ Support multi-target tracking
◉ Built-in battery for beacon
◉ High Precision Positioning
◉ Visualization of positioning and tracking
Technical Parameters
|
USBL Positioning Base Station |
|||||
|
Product Size |
φ230x450mm |
Maximum Communication Rate |
4.96Kbps |
Working Depth |
200m |
|
Product Weight |
<38kg |
Working Temperature |
-5~40℃ |
Positioning Distance |
3000m@good hydrology |
|
Working Frequency |
18~30K |
Ranging Resolution |
6cm |
System Positioning Accuracy |
0.15%D@+30° 0.3%D@+90° |
|
Transmit Power Consumption |
150W |
Built-in IMU |
1°/0.2°sec(L) optional |
Electric trigger |
1 way |
|
Positioning Beacon |
|||||
|
Product Size |
直径85x430mm |
Maximum communication rate |
4.96Kbps |
Working Depth |
2000m |
|
Product Weight |
6kg |
Working Temperature |
-5~45℃ |
Working Frequency |
18~30K |
|
Positioning distance(good hydrology) |
3km Battery powered 5km Externally powered |
Transmit Power Consumption |
35W/90W External Power Supply |
Sensor |
Built-in 2000m depth sensor |
|
External Data Interface |
RS232 |
Sleep Power Consumption |
6mW |
Endurance |
8 hours @ 4s positioning cycle |

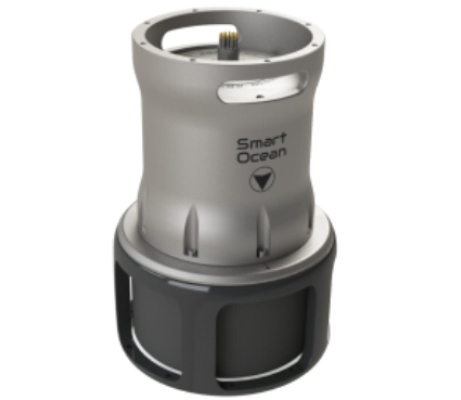

 USBL Positioning Base Station |

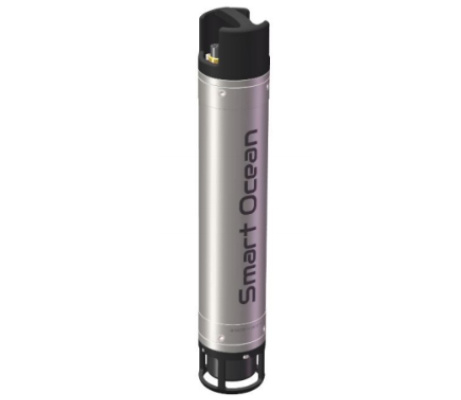

 Positioning Beacon |
|
