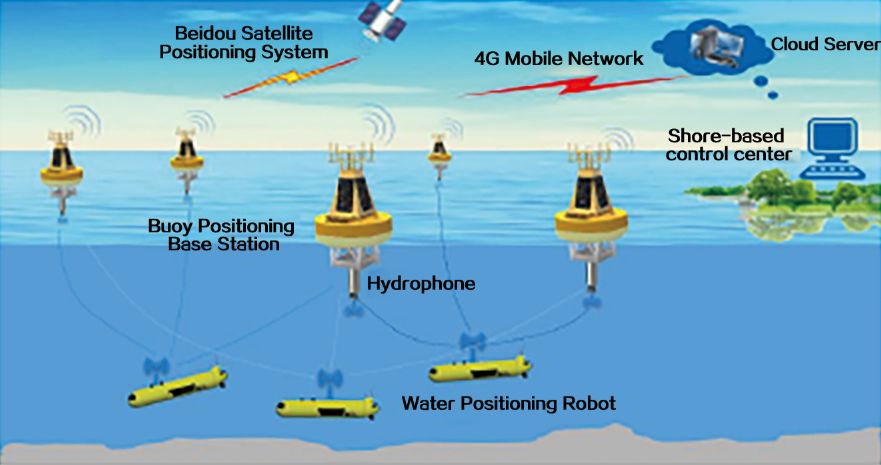

The Underwater "Beidou" Positioning System developed by Wisdom Ocean adopts the LBL-like positioning principle to track and position the underwater UAV in real time and accurately through advanced hydro-acoustic communication technology.
Through advanced hydro-acoustic communication technology, it can track and position the underwater unmanned aerial vehicle accurately in real time and display the running information and trajectory of the unmanned aerial vehicle on the screen of the ground demonstration center.

System Features
◉ Support long-term deployment and long-term work;
◉ Large coverage area, high positioning accuracy and multi-target tracking;
◉ Convenient system expansion and support for customization.

System Indicators

1、Positioning Range: 3 kilometers diameter area	6、Temperature of the invoice communication equipment: 0 ℃ ~ 50 ℃
2、System occupies frequency band range: 20~30KHz (Band 1: 20~23; Band 2: 25~28)	7、Positioning period: 1S ( 1~2 beacons) 6S ( 3~4 beacons); 9S ( 5~6 beacons); 12S ( 7~8 beacons); 15S ( 9~10 beacons)
3、 Positioning error: <3m ( CEP50)
4、Maximum communication distance of underwater beacon: 3000m	8、RTK positioning support: Beidou or GPS
5、Maximum transmitting power of underwater beacon: 65W	9、4G support: Mobile, Telecom, Unicom

Functional Composition

System Components	Component Composition	Quantity	Remarks
Buoy	Buoy body	5 pcs	At least 4, increase or decrease the number of buoy s depending on the area to be covered.
	Buoy power supply system
	Land and sea communication gateway (4GDTU)
	RTK GPS
	Hydro-acoustic communication machine
Underwater Beacon	Self-compatible hydro-acoustic communication Positioning Beacon	1-12 pcs
Ground Demonstration Center	Server (PC)	9pcs
Ground Demonstration Center	Display and Control System (Software)

System Software

Area advance drawing , interface bloom
System parameter setting, instruction issuance
Real-time trajectory punching, historical trajectory query
UUV data display and control instruction issuance
