High reliability, low cost, fast alignment and free maintenance, FG-500C fiber optic gyrocompass system is a solid, fully digital gyro compass perfectly designed for commercial ship Based on strapdown navigation system, it could be installed directly on the vessels without complex frame structure. Short alignment time less than 15 mins, it significantly reduces the preparing time of vessel sailing. High dynamic accuracy gets the vessel a higher security. Especially when sailing in high latitude areas.


FEATURES
◉ Adopts miniaturized medium accuracy closed-loop fiber optic gyroscope as core components
◉ Fast dynamic response
◉ Wide dynamic measuring range
◉ High reliability, meeting the requirements of long-endurance applications
◉ Small size with compact design

APPLICATION
Ships and boats, cargo vessel, fishing vessel, police vessel, cruise vessel, unmanned underwater vehicle, offshore platform, stationary vehicle, unmanned aerial vehicle etc.


Structural Dimension

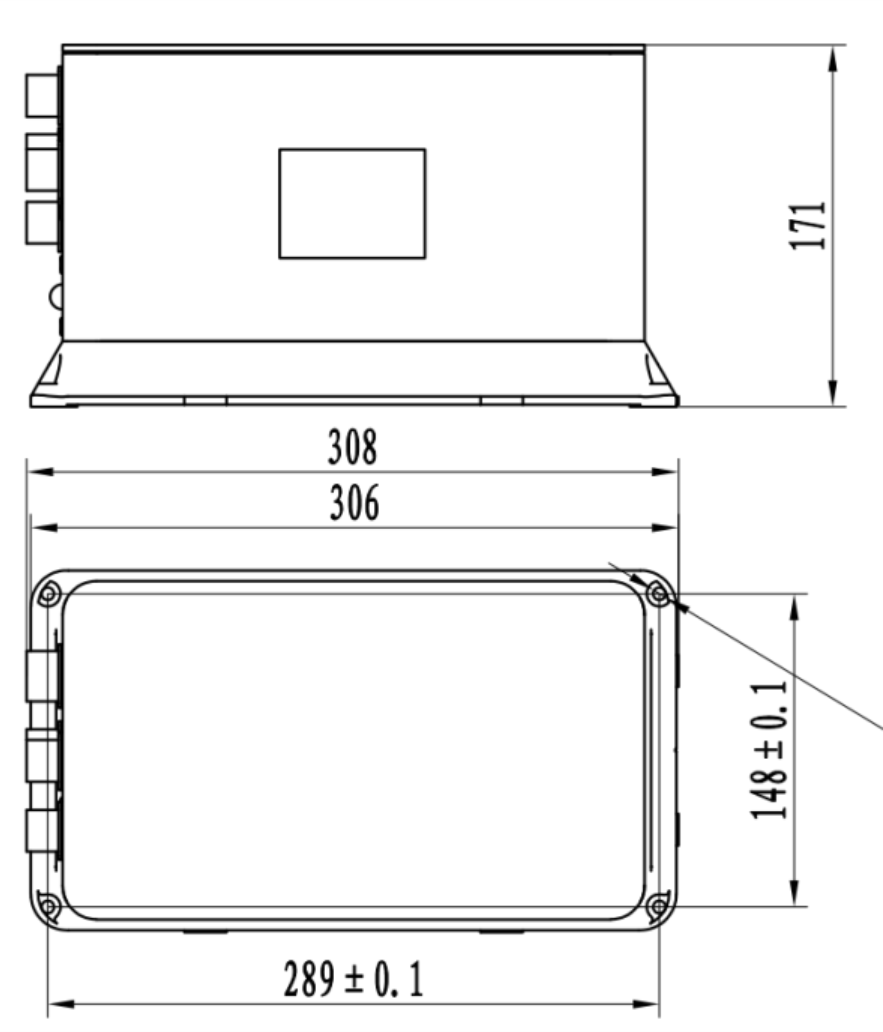

PSU-024 Power Supply Unit can convert external input AC220V power supply to DC24V DC power output, and also can regulate external input DC24V power supply to output low ripple DC 24V power supply, which can realize seamless switching power supply between AC220V power supply and DC24V power supply. The case adopts drip-proof design.

Technical Specification

Input Voltage: AC220V±15% (50Hz±5%); DC20V～36V

Output Voltage: DC24V

Output Power: ≥300W

Water Proof: IP34

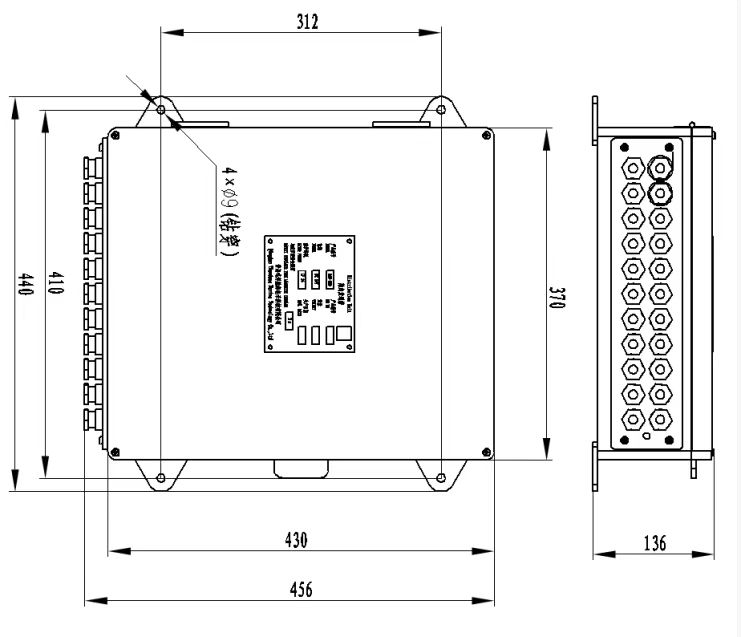

The main function of DAU-280 Distribution Unit is to receive 5-channel RS422 serial port heading signals, receive 4-channel RS422 reference information, and output 8-channel RS422 serial port digital heading signals externally after selecting through the signal selector switch, meanwhile, it provides 8-channel DC24V power supply output, and the shell adopts drip-proof design. The instrument has an abnormal state alarm function, which can be indicated by sound and light alarm.

Technical specification

 Input Voltage: DC24V±10%,

 Output Voltage: DC24V

 Output Power: ≥300W

 Water Proof : IP54

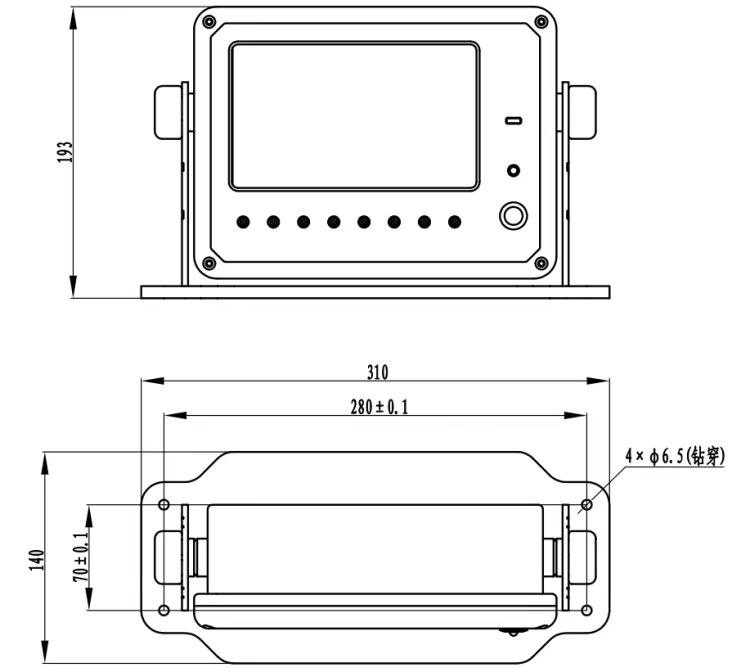

The RMC-100A Display and Control Unit is equipped with a 7-inch screen and is connected to the Power Supply Unit, the Distribution Unit and the master compass through three aviation connectors. It can send control commands to the master compass and receive information from the master compass and the heading box. It can store navigation information and alarm information internally, support online query of alarm information, and support batch export of navigation information.

Technical specification

Input Voltage: DC24V±10%,

Power: ≤10W

Water Proof : IP54
